Measuring and installing a pivot hinge yourself
Make your own choice when purchasing our doors: do you measure and/or install the door yourself, or do you let our experts do it? With a pivot hinge, precise measurement is crucial. Determine the best location for the hinge, and check the flatness of the floor and ceiling. Therefore, let us handle the measuring and installation.

| 28-08-2025 | |
| Reading time: 3 minutes | |
| Materials, glass and colour |

When self-measuring and installation are possible
Measuring and fitting it yourself is quite straightforward with a standard pivot door in an easily accessible space. The floor and ceiling must be level, and it is necessary to drill 3 to 4 centimetres into the ceiling and one centimetre into the floor. There must be a pipe-free drilling spot. Have our expert handle the measuring if you have recessed or electric underfloor heating. Also with uneven or suspended ceilings/walls, large or double doors, limited workspace or doubt about the drilling location, it is important to leave the measuring and installation to experts. This ensures that the pivot hinge rotates freely and closes tightly.
Required tools and preparation
You do not need much for properly measuring and fitting a pivot hinge: a tape measure for measuring, a cross-line laser, and a spirit level for setting lines. Furthermore, a screwdriver with a drill bit is needed to secure the hinge. Finally, you need a marking pencil to mark out dimensions. That is how you neatly mount the pivot hinges in place.

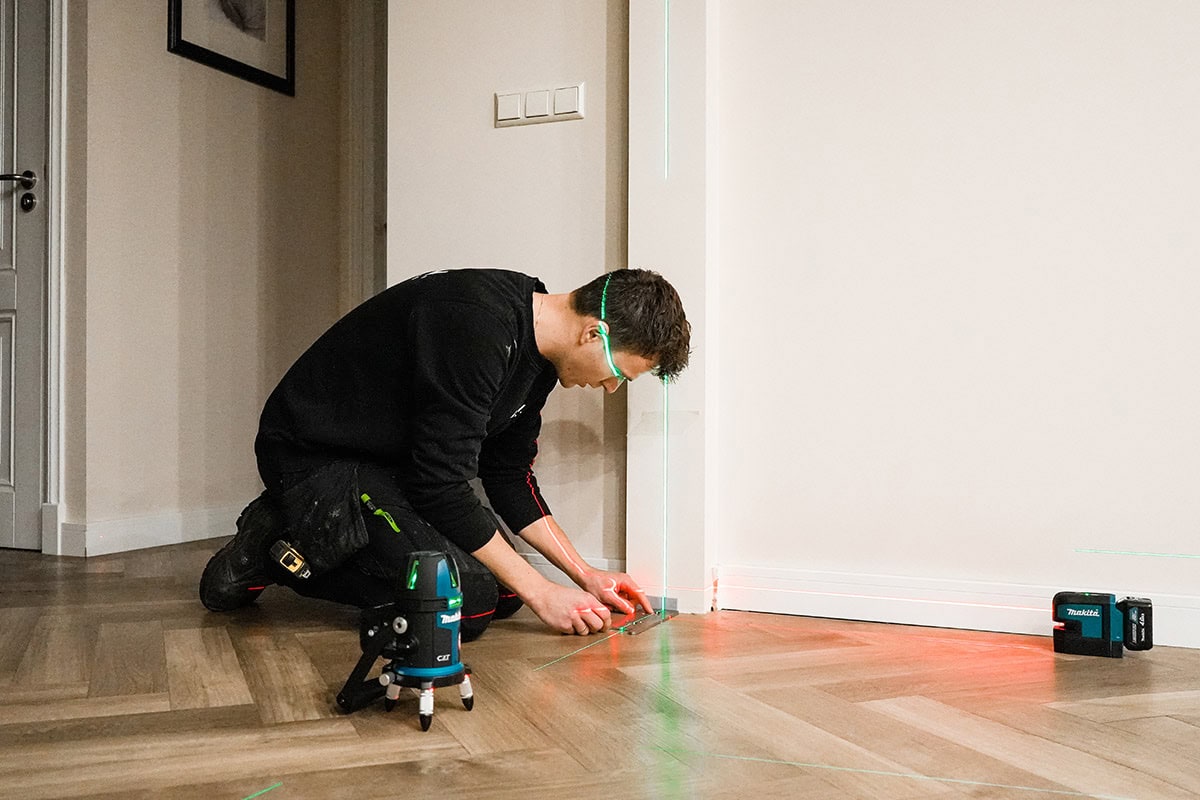

Self-measuring: step by step
When you decide to do the measuring yourself, it is important to follow our step-by-step guide. We start by making a sketch of the opening and the surrounding area (wall, direction of swing, hinge position). Of course, we will help you with this.
Check carefully that there are no obstacles at the installation location or in the sliding or swing direction of the door. Next, measure the width and height at a minimum of three points. Using a spirit level or cross-line laser, check whether the floor and ceiling are out of level.
Also check whether the opening meets the conditions so that the whole assembly can be fitted securely and correctly. Consider a load-bearing and stable surface for mounting tracks or hinges, walls that are square and flat without protruding skirting boards or pipes, and sufficient clearance above and beside the opening to be able to position and adjust the door correctly.
Self-assembly: the general steps
The installation of a pivot door involves the following steps:
- The pivot door is secured at 4 points in the floor and at 3 points in the ceiling. These must first be marked out and pre-drilled according to our manual.
- Once these have been prepared, the floor box can be fixed into the floor. This is the hinge that ensures the door closes neatly.
- Afterwards, the pivot door is placed into the installed floor box.

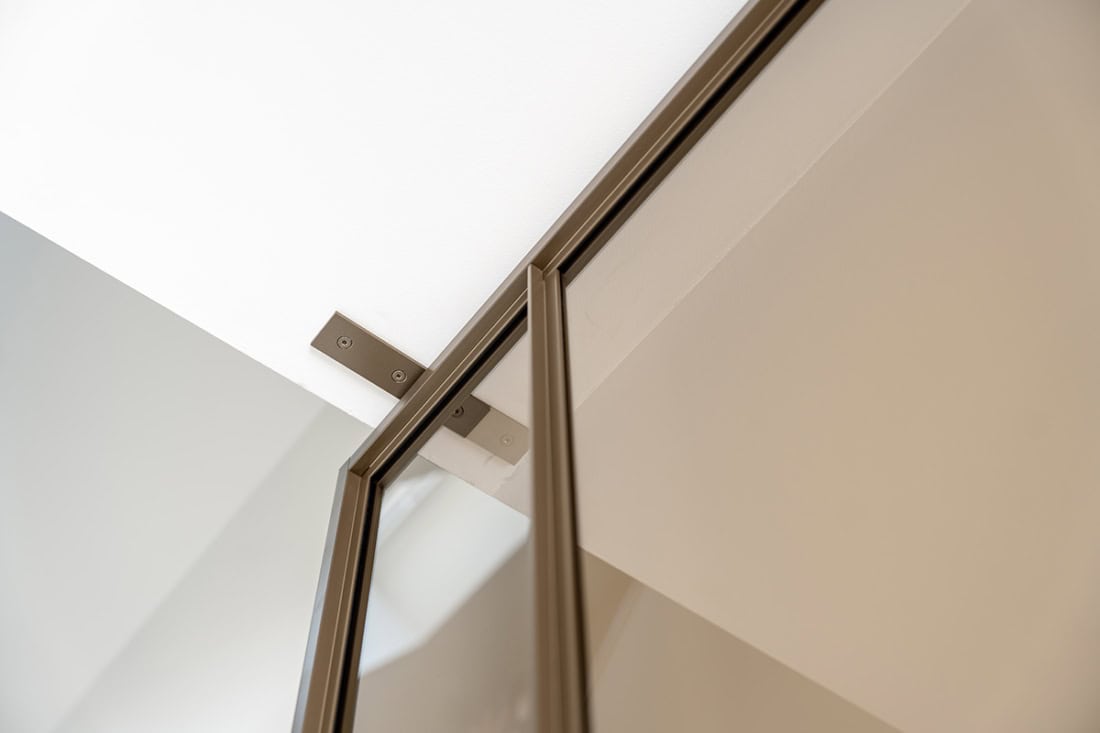

- Once the door has been stood upright, the top pivot (the hinge in the ceiling) of the pivot door can also be secured in the ceiling.
- Hereinafter, the adjustment of the pivot door so that it closes in the correct position and at the desired speed.
Would you like certainty about the drilling location and the adjustment? Schedule a measuring or installation appointment. Take contact us or pop into our showrooms at Barendrecht, Mijdrecht, Veghel or Nunspeet.
